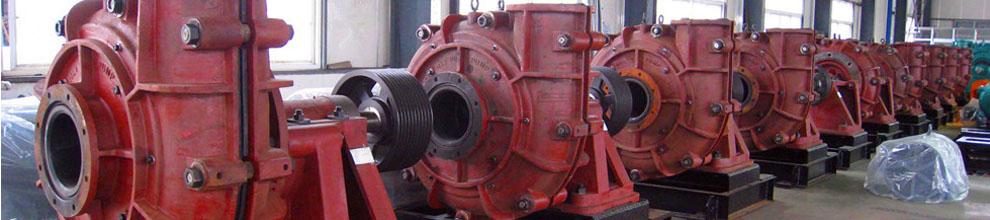

Tobee® TH Slurry Pumps are the most comprehensive range of centrifugal slurry pumps for use in mining, minerals processing, coal preparation, dredging, metallurgy, power plant, chemical and general industry applications. The wetted parts materials designed by High abrasion and corrosion resistance alloy, rubber or polyurethane etc, Expecially for handling highly abrasive,high density slurries.

Design Features:
• Horizontal,Cantilevered,Centrifugal,Single stage slurry pump design.
• Bearing assembly - A large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.
• Casing - Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.
• Impeller - Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and moulded elastomer impellers are completely interchangeable.
• Liners - Easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance. Hard metal liners are completely interchangeable with pressure moulded elastomer
• Throatbush - Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
• Shaft seal - Packing seal,Centrifugal seal,Mechanical seal;
• Driving type - Flexible coupling,V-belt with pulleys,Gearbox,VFD,SCR control etc.
• The discharge branch can be oriented to any eight positions at the interval of 45 degrees;
• Easy to install and maintain in on-site application.

HEBEI TOBEE PUMP CO.,LIMITED
Add:Hi-tech Development Zone | Shijiazhuang City | Hebei Province | China.
Email:Sales@tobeepump.com | Skype:Tobee.pump | Mob:+86-18032034573 | Web:www.tobeepump.com

Tobee® TH Centrifugal Slurry Pump.pdf

Entries in this blog



Warman Slurry Pump

Tobee® TH Slurry pumps are interchangeable with world’s standard Warman AH slurry pumps for heavy duties, A wide variety of impellers and shaft seals provide a perfect fit for a wide range of applications. The TH slurry pump provides excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost. These horizontal slurry pumps are designed for hyper heavy duty applications such as mill discharge, process plant, coal washing, dregding sands, tailings

Tobee Pump

Tobee Pump



Horizontal Slurry Pump

Tobee® TH Slurry Pumps are the most comprehensive range of centrifugal slurry pumps for use in mining, minerals processing, coal preparation, dredging, metallurgy, power plant, chemical and general industry applications. The wetted parts materials designed by High abrasion and corrosion resistance alloy, rubber or polyurethane etc, Expecially for handling highly abrasive,high density slurries. Design Features: • Horizontal,Cantilevered,Centrifugal,Single stage slurry pump design.

Tobee Pump

Tobee Pump



Vertical Slurry Pump

Tobee® TP(R) Vertical slurry pump is a cantilever sump pump,Which work submerged to transport high abrasive and high density slurries with large particles.It doesn't need any seal water. Hard metal lined or fully rubber lined fitted.High capacity double suction semi-open impeller design.and suction agitator is also available. Design features: 1.Vertical,Submerged,Cantilevered shaft sump slurry pump 2.Bearing Assembly - The bearings, shaft and housing are generously proportio

Tobee Pump

Tobee Pump



Gravel Sand Pump

Tobee® TG Gravel Sand Pump is horizontal single-casing gravel pump with wide channel to transfer sands,slurries or gravels with big particle size. The wet parts are made of Ni-hard and high-Chrome alloys to ensure long service life. It has superior performance than common pumps in dredging, sand mining, barge loading and mineral processing etc. With all the advantages of TG Gravel pump,TGH gravel pump has achieved extra high head for special working conditions. Design Features: • Horiz

Tobee Pump

Tobee Pump
